Description

Introducing the SV-Xtreme Nitrous Plate System! This system was designed with single venturi Carburetors in mind. It is race bred and makes great power, great for streetcars and ET class racers. This is NOT a cheapened up kit, it’s built with all the quality workmanship and parts you have come to expect from I-S. It’s designed around and built for racers that need a plate with a true 400 HP rating. What makes our plate systems a step above an average out-of-the-box plate system is the way we blueprint, assemble, and jet map the system as well as the great tech support we provide.

Note:

A flow tool is a necessity to properly tune your nitrous system. Having your fuel pressure set accurately will provide the most out of your tune-up. If you purchase a Flow Tool with your system you will receive $50 off.

The Plate

The plate is 1.125” thick billet aluminum anodized black and laser engraved with the Induction Solutions logo. The holes are precision CNC machined and have the correct area to support the max horsepower rating.

The Solenoids

This plate system comes with our SuperMax Bottom Exit Nitrous Solenoid (.125) and our I-S Bottom Exit Fuel Solenoid (.178). Both solenoids come with a filtered inlet fitting installed and mounted on one of our billet aluminum solenoid brackets. The nitrous solenoid has a high amp draw coils and a .125 orifice for improved flow. These are the same solenoids that are used on our X275 Direct Port Systems. Each SV-Xtreme is flowed and comes with custom jet mapping and brass widebody jets for 100-400+ HP

The Look

This plate is “blacked out” it has braided stainless solenoid lines covered in black sleeve, along with black output fittings from the solenoids.

The Induction Solutions Difference

There are many companies providing nitrous products to the market, however none offer the same tech support and quality of kits that we do at Induction Solutions. All of our systems are completely blueprinted with attention to detail and hand built to order. Each plate system is flowed for every tune up from top to bottom in 50hp increments and we provide a hand written tech sheet specific to every system, not some mass produced, one size fits all, print out. All of our AN lines come standard with a protective sleeving that acts as a conductive insulator and makes the line far less abrasive to painted and anodized surfaces than industry standard uncoated braided stainless lines. If you decide to purchase one of our complete kits, you will receive a truly complete kit that includes details like a purge kit and a race ready bottle including a gauge, NHRA racer safety, and bottle nut. All of the aforementioned parts are things most companies leave out and want to sell you separately, even though they are necessary to run the system properly and safely!

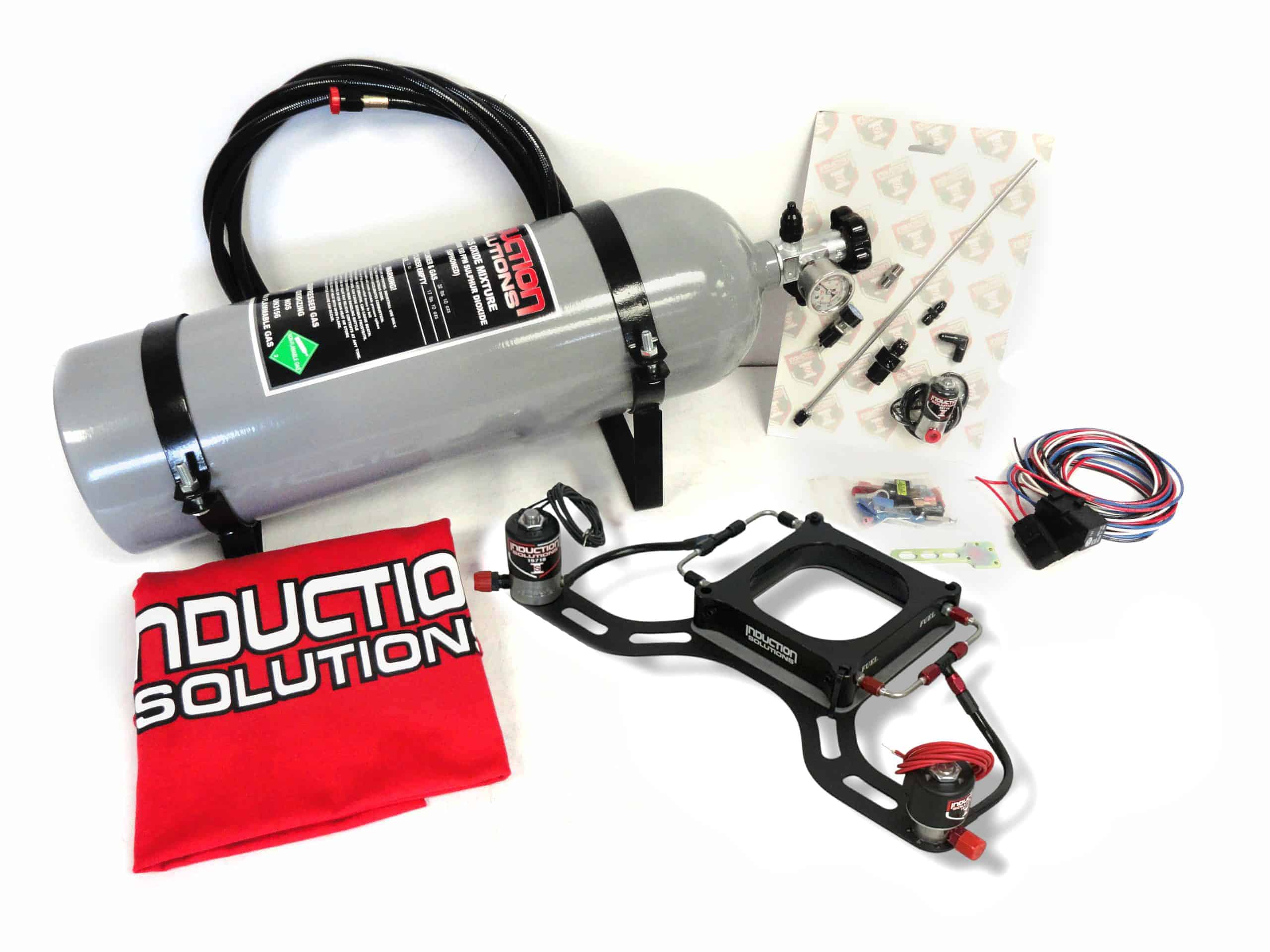

Complete Kit Includes

• Induction Solutions Blueprinted SV-Xtreme Plate System
• 15lb Race Ready Bottle (1.5″ Liquid Filled Gauge, -6 Bottle Nut, and Racer Safety already installed)
• Bottle Mounting Brackets
• -6 Nitrous Supply Line
• Full Purge Kit
• Electrical Hardware including WOT Switch, Arming Switch, Power Relay and Connectors

*** You will also lose the bigger tune-ups on your plate when you are running E85, Alcohol or Q16. When using those fuels we also recommend that you have your plate flowed for race gas as well for an additional $75 at time of purchase.***
